CATTLE SLATS

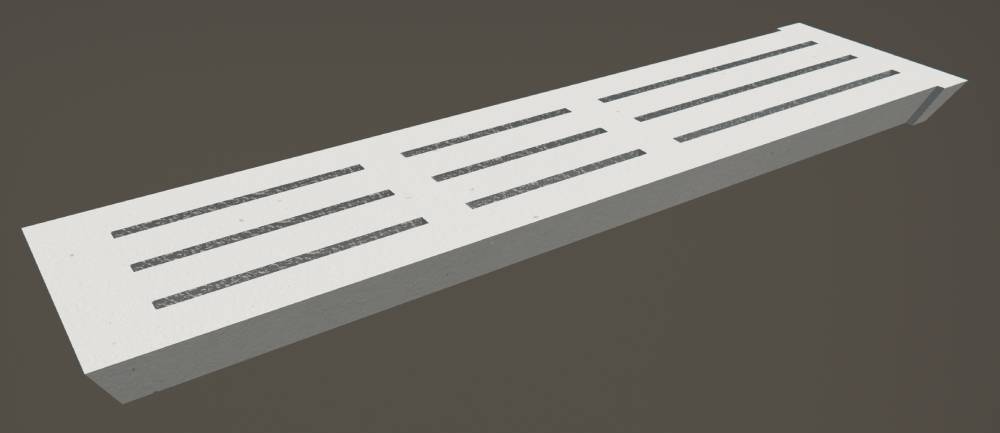

Cattle Slats
Cattle Slats

Our Cattle Slats are ideal for use over slurry channels, underground tanks or as part of a suspended floor system.

  • Wide range of Sizes
  • Available in 2-10 tonne Axle Loadings
  • Non-Slip Finish
  • 50Kn High Strength Concrete
  • Designed to BS standards

Technical Drawings

Concrete Support Beams

Contact Us

Get in touch for a free, no obligation quotation…

Contact Us

SIZES AVAILABLE

Width
(channel opening to span)

710mm910mm1100mm
2′ 4″2′ 11″3′ 7″

Run Length

27002700800
8′ 9″8′ 9″2′ 7″

Thickness

150150150
6″6″6″

Loadings Available

2-6t2-6t2-6t

Width
(channel opening to span)

1750mm2000mm2200mm2500mm2750mm3000mm3430mm3580mm3630mm
5′ 9″6′ 7″7′ 2″8′ 2″9′9′ 10″11′ 3″11′ 9″11′ 11″

Run Length

800800800800800800800800800
2′ 7″2′ 7″2′ 7″2′ 7″2′ 7″2′ 7″2′ 7″2′ 7″2′ 7″

Thickness

150150150150150150180180180
6″6″6″6″6″6″6″6″6″

Loadings Available

2-4t2-4t2-4t2-4t2-4t2-4t2-4t2-4t2-4t

Width
(channel opening to span)

1525mm1830mm2000mm2100mm2200mm2440mm2500mm2750mm3000mm3050mm3350mm3580mm3630mm
5′ 0″6′ 0″6′ 6″7′ 0″7′ 2″8′ 0″8′ 2″9′ 0″9′ 10″10′ 0″11′ 0″11′ 9″11′ 11″

Run Length

760760760760760760760760760760760760760
2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″2′ 6″

Thickness

180180180180180180180180180180180180180
7″7″7″7″7″7″7″7″7″7″7″7″7″

Loadings Available

6t6t6t6t6t6t6t6t6t6t6t6t6t
Cattle Slats Size Chart

Heavy Duty Slats

Width
(channel opening to span)

40004878
13′ 1″16

Run Length

12201220
4′ 0″4′ 0″

Thickness

250250
10″10″

Loadings Available

8-10t8-10t
