Interlocking Concrete Blocks

Interlocking Concrete Blocks

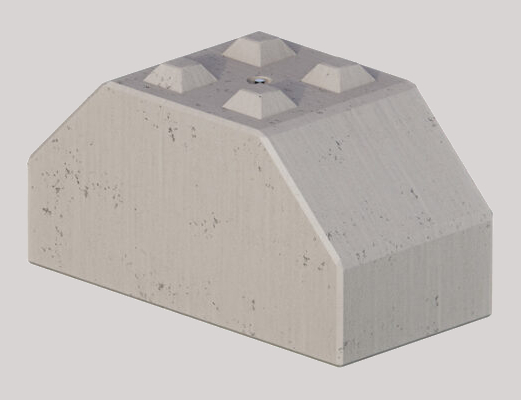

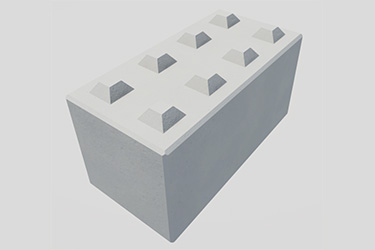

Interlocking Concrete Blocks provide all the benefits of a ‘cast in situ’ concrete structure whilst offering complete design flexibility. Our blocks interlock when placed on top of one another to create a strong and stable wall.

Installation is quick and easy; they simply lift into place without any need for fixing or jointing materials. Once installed the blocks can be moved easily, allowing the layout, height and size of the structure to be adapted and changed as required.

Each Block is manufactured with durability and efficiency in mind. We use High strength Concrete and manufacture each block with two pairs of cast-in lifting pins for easy transportation and installation.

Applications

  • Retaining walls
  • Material storage Bays
  • Flood Alleviation
  • Traffic Management
  • Counterweights
  • Fire Containment
  • Security Walls / Bunds
  • Buildings
  • Sound Barriers

Features & Benefits

  • Fast and Cost-effective Solution
  • Interlocking design increases the retaining capacity and stability
  • Range of sizes Available
  • No jointing or fixing materials required
  • Create Temporary and permanent structures with ease!
  • Ability to move / modify the layout
  • Fire Resistant – Class A to EN 13501-1:2007-A1:2009

Panel Measurements

External Measurements

WIDTH
(mm)

DEPTH
(mm)

LENGTH
(mm)

WEIGHT
(tonne)

800

800

1600

2.5

800

800

1200

1.8

800

800

800

1.25

800

800

400

0.625
