Products

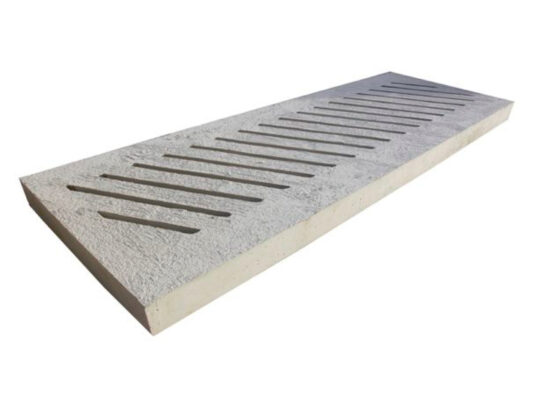

Diagonal Slats
Our Diagonal Slats are designed to be used over Slurry Channels and at the end of scraper passages. The angle allows muck to easily fall through the slots, whichever way the scraper passes over, leaving a clean surface.
- Suitable for 710, 900, 1100, 1500 and 1830mm Wide Channels
- Must be supported along the long sides
- Available in 4-10 tonne Axle Loadings
- Non-Slip Finish
- 50Kn High Strength Concrete
- Designed to BS Standards
SIZES AVAILABLE
Width
(Channel opening to span)
| 710mm | 900mm | 1100mm (43”) | 1500mm (59”) | 1800mm (71”) |
Thickness
| 150 (6”) | 150 (6”) | 180mm (7”) | 200mm (8”) | 200mm (8”) |
Axle load
| 4t | 4t | 6t -10t | 6t -10t | 6t -10t |
