We manufacture four different sizes and capacity of concrete water troughs, three of which are rectangular in shape one is the large circular type.

All water troughs are designed with a service box at one end with a removable lid for easy access to the filling mechanism.

The smallest of our concrete troughs has been redesigned with smooth rounded corners and an inset lid on the service box to prevent it being dislodged.

Each trough is cast with a small hole in the bottom, for which a bung is supplied, for easy emptying.).

Technical Drawings

Contact Us

Get in touch for a free, no obligation quotation…

SIZES AVAILABLE

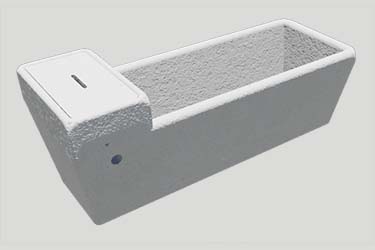

CT6

CapacityLengthWidthDepthWeight
 60 Gallon1830mm (6’0”) 610mm (2’0”)510mm (1’8”) 350Kg

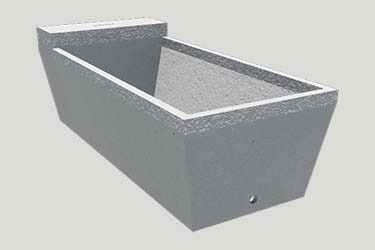

CT7

200 Gallon2032mm (6’8”)915mm (3’0”)610mm (2’0”)750Kg

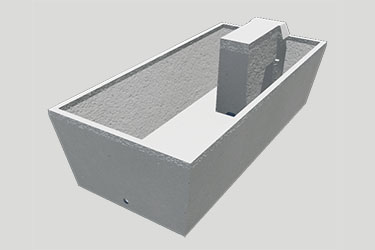

CT8

400 Gallon2540mm (8’4”)1220mm (4’0”)685mm (2’3”)1250Kg

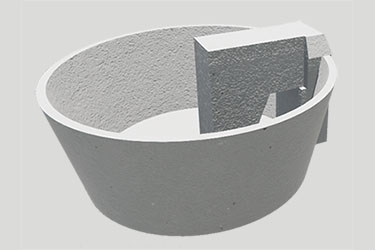

CTR

300 Gallon1830mm (6’0”) Diameter685mm (2’3”)900KG
